Scientists from BioTuring and UCSD Tackle Astrocyte Segmentation in Complex Brain Images

Astrocyte segmentation is challenging because these cells do not have simple shapes, are densely packed, and often intertwine with each other. Mapping them in brain images is notoriously difficult – signals blur, noise dominates, and current cell segmentation algorithms often fail, especially in injured tissues.

Scientists at BioTuring and UC San Diego tackled this challenge by combining two complementary signals – clean DAPI-stained nuclei and noisy GFAP protein markers. Starting from the reliable DAPI nuclei, they iteratively refined GFAP signals into stable maps, expanded cell outlines step by step, and filtered out false positives. The result: accurate, consistent astrocyte boundaries that hold up even in complex, damaged tissues.

Figure 1. Accurate segmentation of astrocytes from fluorescence images

This work began through our collaboration with Hugo Kim at UC San Diego, whose spatial transcriptomics studies on brain injury faced a critical challenge: isolating astrocytes from massive, noisy datasets exceeding 16 million spots. No existing algorithm could handle it. Inspired by his needs, scientists at BioTuring rethought the mapping process — starting from clean DAPI-stained nuclei, iteratively refining GFAP signals into stable outlines, and filtering out non-astrocytes. The result: sharp, reliable astrocyte boundaries that remain accurate even in damaged brain tissue, enabling deeper insights into neural repair and disease.

Unpacking the Core Challenges

Astrocyte segmentation requires identifying specific cell regions in brain tissue images and tracing their boundaries, where each cell shows a nucleus surrounded by GFAP-marked branches. While final processed images allow visual recognition of these patterns, the original data hides them under substantial complexity.

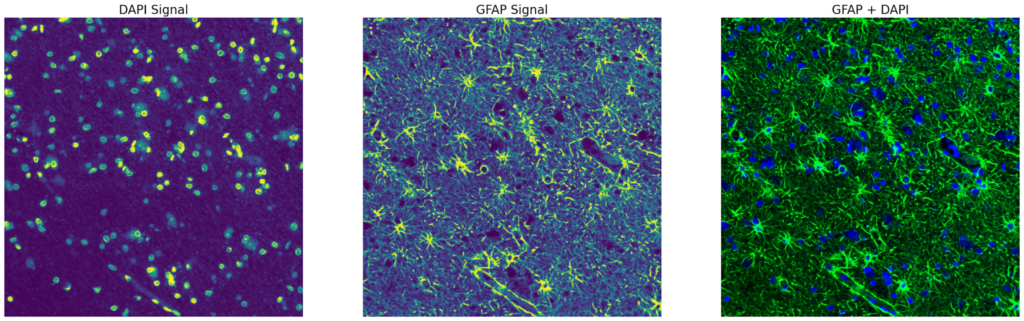

Figure 2: The first picture contains DAPI-stained nuclei, the second shows GFAP signals, and the third combines both GFAP and DAPI.

Noise in the raw image hides extensions from nuclei and makes GFAP blend with background and neighboring cells that saturate the raw signals. This makes cell boundaries segmentation challenging.

These issues escalate in injured areas, where disordered structures tangle markers further. Standard deep learning tools mix astrocyte features with artifacts or completely miss the cells, creating inaccurate maps. These models require heavy adjustments yet still vary across samples, pointing to the need for custom methods.

BioTuring’s Step-by-Step Solution

Our key insights: astrocytes’ fibrous complexity demands starting from reliable anchors – the nuclei – then navigating noisy GFAP signals with precision. This shifts the approach from all-at-once detection to a guided expansion that builds robustness layer by layer.

We begin by capitalizing on DAPI’s strength in clearly identifying nuclei, turning them into solid starting points for each cell amid the broader noise. This foundation contrasts sharply with the pitfalls of jumping straight into GFAP analysis, where signals alone offer no clear path.

Building on that, we tackle GFAP by converting its variable intensities into a binary map, but we sidestep the common trap of simple thresholding, which fails under noise by working sporadically at best. Instead, the Frangi filter [1] provides a more robust way to find consistent signals from GFAP by considering both the current pixel and its neighbors.

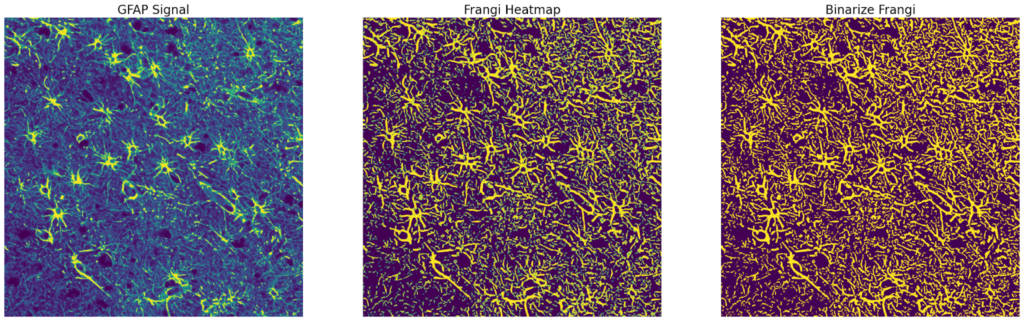

Figure 3: Frangi-processed GFAP map

With nuclei as guides, propagation flows outward along this map, tracing astrocyte boundaries where direct detection would falter against their intricate shapes. The process stays tethered to actual signals, avoiding the overreach that plagues unguided tools.

Yet DAPI pulls in nuclei from all cell types, like neurons and microglia, so we refine by averaging GFAP intensity around each one – high values lock in astrocytes, low ones trigger removal, a step that exposes the limitations of broader detection without such targeted filtering.

Finally, we then propagate again from the remaining nuclei so boundaries follow the GFAP network more completely. This interconnected flow not only handles variation but reveals patterns that transform raw data into actionable neuroscience tools.

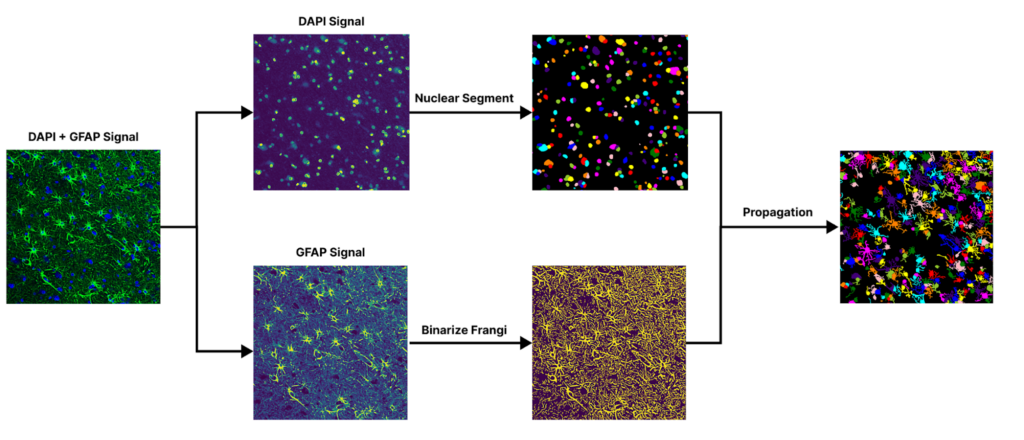

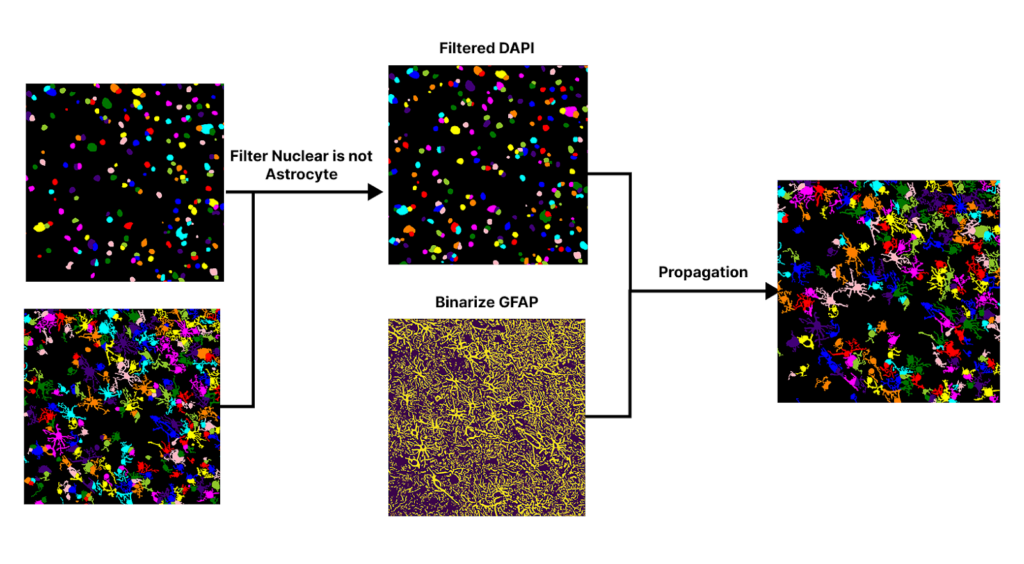

Figure 3: BioTuring Astrocyte segmentation algorithm. The algorithm includes two major steps. In the first step (upper image), every cell starts from its nuclei, and expands using the guided GFAP signal. In the second step (lower image), cells with low GFAP intensity are removed and repeat the propagation of GFAP for a full astrocyte segmentation result.

What Our Results Mean for Neuroscience

Our results uncover clear astrocyte boundaries, bringing order to complex, overlapping structures even in damaged or densely packed brain tissues. Unlike black-box deep learning approaches that often struggle with variable signals, our method provides stable, interpretable performance under challenging conditions. This enables researchers to precisely study astrocyte morphology and spatial organization – key to understanding brain injury, neurodegeneration, and the effects of emerging therapies.

Contact: support@bioturing.com

References:

1. Frangi, A. F., Niessen, W. J., Vincken, K. L., & Viergever, M. A. (1998). Multiscale vessel enhancement filtering. In W. M. Wells, A. Colchester, & S. Delp (Eds.), Medical Image Computing and Computer-Assisted Intervention – MICCAI 1998 (LNCS, vol. 1496, pp. 130–137). Springer.
